Generating Beautiful Code Snippets with Carbon and Selenium

Did you notice our Python tips lately? They looks more sexy, don’t they? That’s thanks to Carbon which lets you create beautiful images of your source code. As much as I love its interface though, what if we can automate this process generating the image for us?

That’s what we did and posting new tips to Twitter is now a breeze. In this article I will show you how using a bit of BeautifulSoup and selenium. Enjoy!

Getting Ready

If you want to follow along, the final code is here.

First make a virtual environment and pip install the requirements. Also make sure you have the chromedriver in your PATH.

[bobbelderbos@imac code]$ mkdir carbon && cd $_
[bobbelderbos@imac carbon]$ alias pvenv
alias pvenv='/Library/Frameworks/Python.framework/Versions/3.7/bin/python3.7 -m venv venv && source venv/bin/activate'
[bobbelderbos@imac carbon]$ pvenv
(venv) [bobbelderbos@imac carbon]$ python -V
Python 3.7.0
(venv) [bobbelderbos@imac carbon]$ pip install -r requirements.txt
...
Successfully installed beautifulsoup4-4.7.1 bs4-0.0.1 certifi-2018.11.29 chardet-3.0.4 idna-2.8 requests-2.21.0 selenium-3.141.0 soupsieve-1.8 urllib3-1.24.1
(venv) [bobbelderbos@imac carbon]$ ls ~/bin/chromedriver
/Users/bobbelderbos/bin/chromedriver

Introducing our Platform Tips

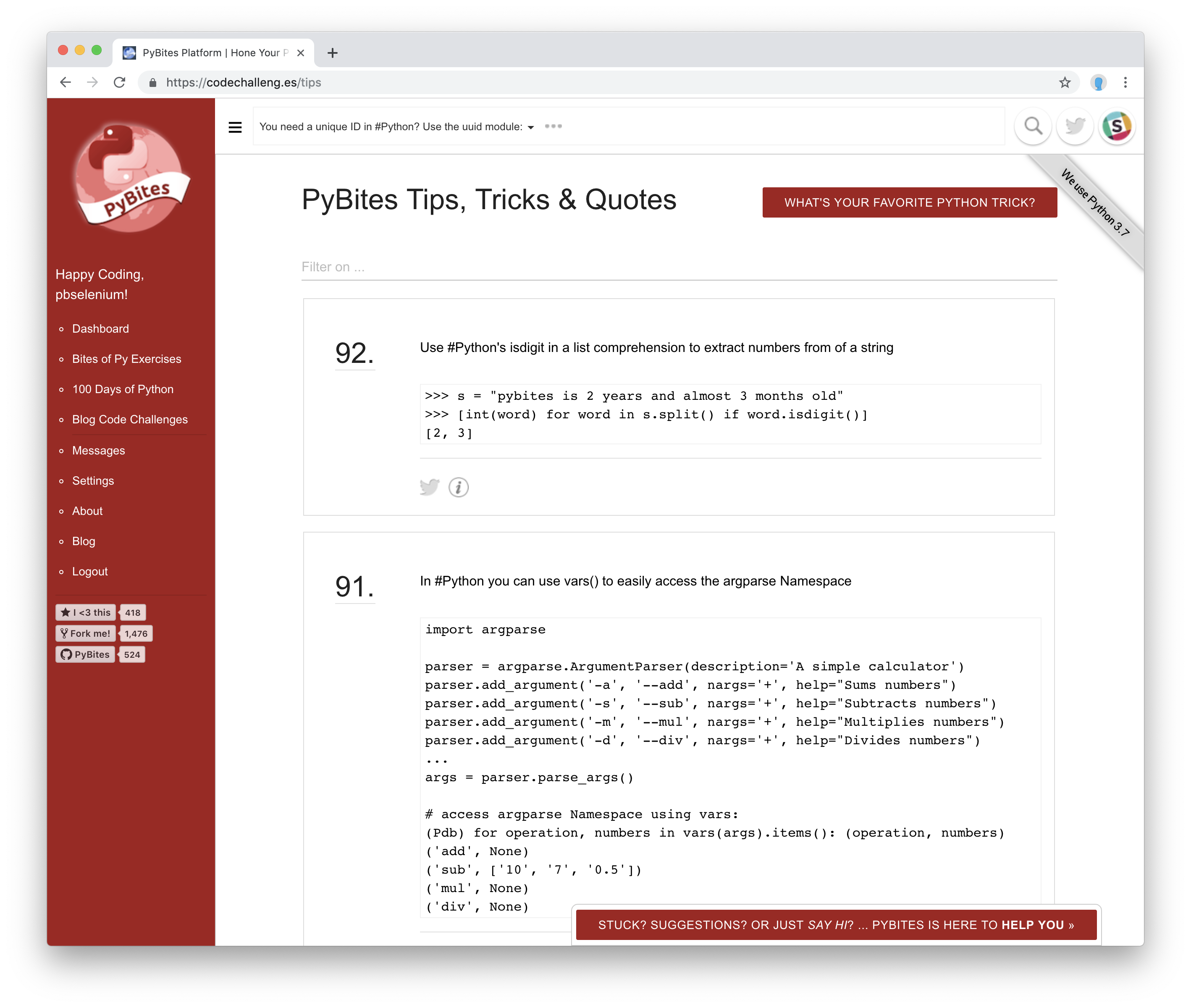

At the time of this writing we have 92 tips on our platform:

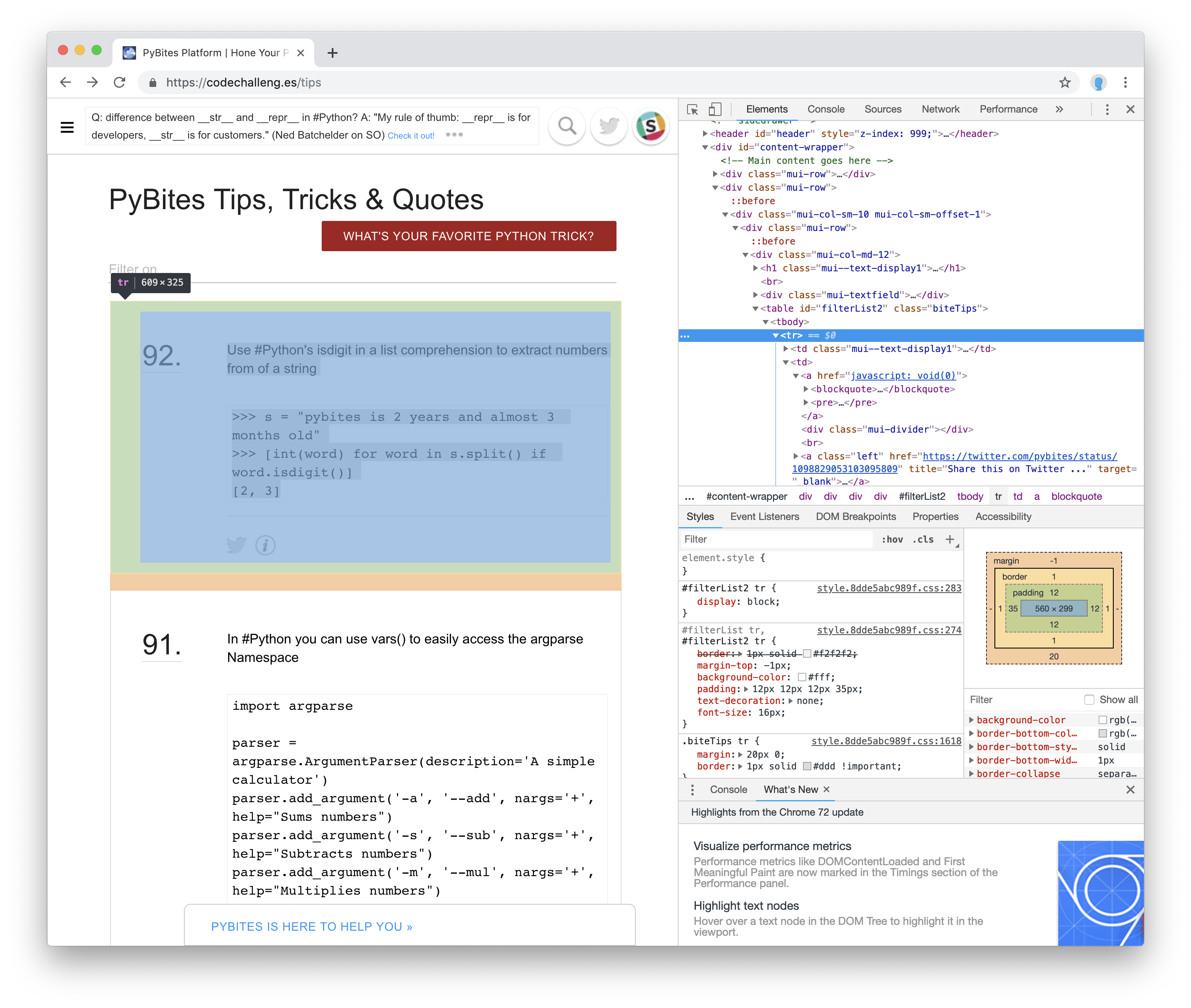

Let’s inspect the tip html we need to parse with BeautifulSoup:

Each tip is wrapped in a tr where the tip text is in a blockquote and the code in pre tags.

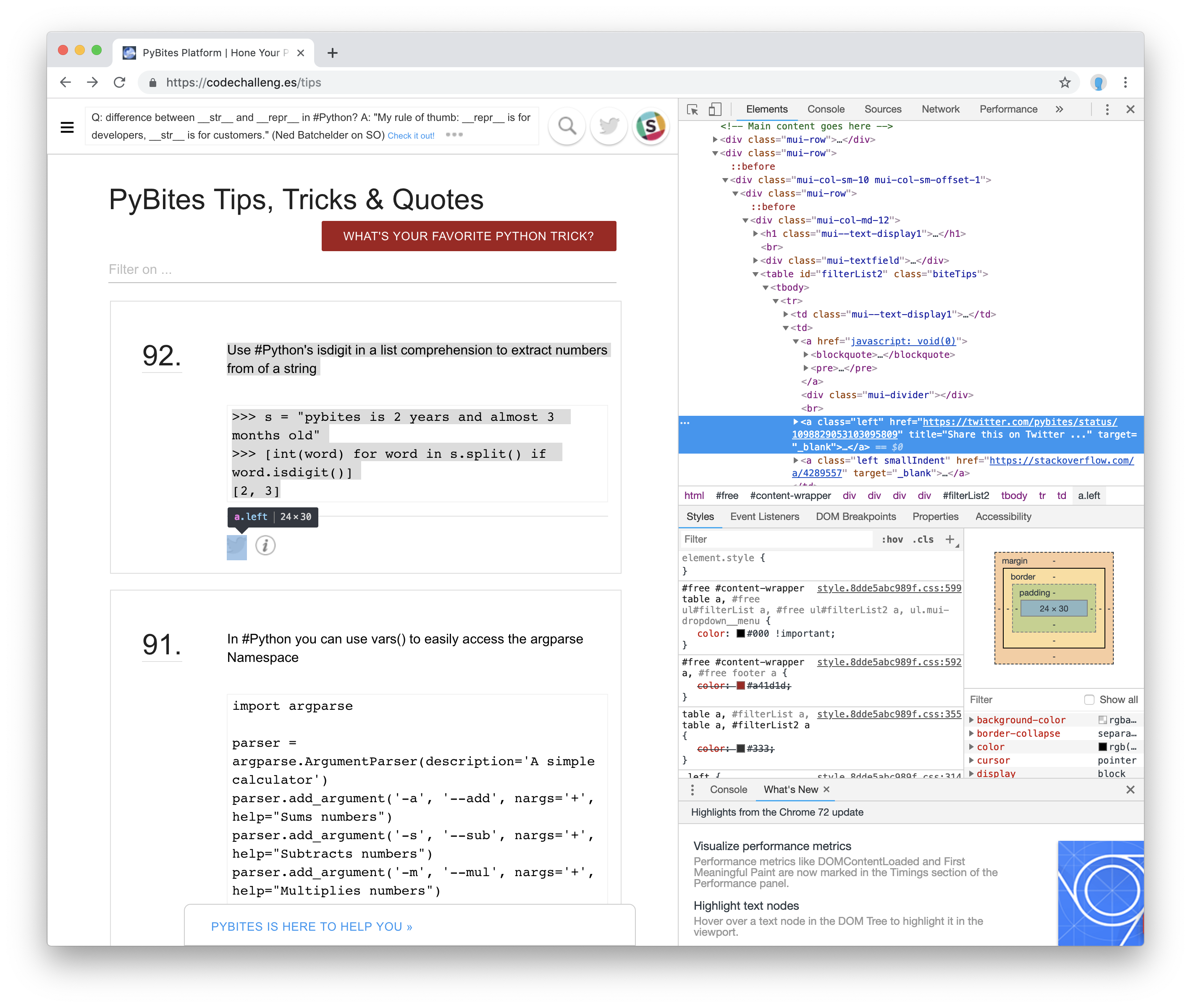

We also want to know if a tip has already been shared out by inspecting the Twitter link. In this example it has pybites/status which means we did.

By the way, I didn’t realize it at the time of coding this, but we did make an API GET endpoint some time ago. If there is an API it’s preferred to use that to retrieve data. However knowing BeautifulSoup might come in handy too 🙂

I will do a follow-up post how to convert this into a Tips API …

Bootstrapping the script

Before scraping the tips page, let’s define the overall structure of the script:

from collections import namedtuple
from random import choice
import sys
from time import sleep
import urllib.parse

from bs4 import BeautifulSoup
import requests
from selenium import webdriver

TIPS_PAGE = 'https://codechalleng.es/tips'
PYBITES_HAS_TWEETED = 'pybites/status'
CARBON = 'https://carbon.now.sh/?l=python&code={code}'
TWEET_BTN_CLASS = 'jsx-2739697134'
TWEET = '''{tip} {src}

  Check out more @pybites tips at https://codechalleng.es/tips

(image built with @carbon_app)

{img}
'''

Tip = namedtuple('Tip', 'tip code src')


def retrieve_tips():
    """Grab and parse all tips from https://codechalleng.es/tips
    returning a dict of keys: tip IDs and values: Tip namedtuples
    """
    pass


def get_carbon_image(tip):
    """Visit carbon.now.sh with the code, click the Tweet button
    and grab and return the Twitter picture url
    """
    pass


if __name__ == '__main__':
    tips = retrieve_tips()
    if len(sys.argv) == 2:
        tip_id = int(sys.argv[1])
    else:
        tip_id = choice(list(tips.keys()))

    tip = tips.get(tip_id)
    if tip is None:
        print(f'Could not retrieve tip ID {tip_id}')
        sys.exit(1)

    src = tip.src and f' - see {tip.src}' or ''
    img = get_carbon_image(tip)

    tweet = TWEET.format(tip=tip.tip, src=src, img=img)
    print(tweet)

OK step by step:

• We are going to use some nice stdlib modules like collections and random. Secondly we import the external modules we just installed.

• We define some constants. TWEET is the template of the tweet we want to build. I will explain why we need TWEET_BTN_CLASS when we get to the carbon section …

• I define a namedtuple (basically a class without behavior) to hold a tip.

• We are going to do the work in two functions: retrieve_tips and get_carbon_image (I probably should add some type hinting on the next iteration …)

• Under if __name__ == '__main__' (aka “I, the script, am called, not imported”) I define two ways to call the script:

  • with exactly one argument (len(sys.argv) == 2, sys.argv[0] is the script name), retrieving the tip by numeric ID (see the first column of the tips table).

  • with any other number of arguments, taking a random tip from the retrieved dict using random.choice.

• It retrieves the tip from the tips dict and creates the tweet using the TWEET template and prints it to stdout. For now I am happy to manually post it (see demo at the end).

Parsing the tips

At this point the code at best will throw an AttributeError, because our tips dict is empty. So let’s write retrieve_tips to populate it:

def retrieve_tips():
    """Grab and parse all tips from https://codechalleng.es/tips
    returning a dict of keys: tip IDs and values: Tip namedtuples
    """

Firt we need to retrieve the page with requests:

    html = requests.get(TIPS_PAGE)

We then instantiate a BeautifulSoup object passing it in the response text and parser:

    soup = BeautifulSoup(html.text, 'html.parser')

As we saw all the tips are in a table, each one in a table row or tr, so let’s get all of them:

    trs = soup.findAll("tr")

Next let’s use a data structure to store the tips. At first I used a list but later I wanted to index by tip ID, so a dict turned out to be more appropriate:

    tips = {}

Next let’s loop through the rows, creating Tip namedtuples and adding them to our tips dict:

    for tr in trs:
        tds = tr.find_all("td")
        id_ = int(tds[0].text.strip().rstrip('.'))
        tip_html = tds[1]

        links = tip_html.findAll("a", class_="left")
        share_link = links[0].attrs.get('href')

        pre = tip_html.find("pre")
        code = pre and pre.text or ''

        # skip if tweeted or not code in tip
        if PYBITES_HAS_TWEETED in share_link or not code:
            continue

        tip = tip_html.find("blockquote").text
        src = len(links) > 1 and links[1].attrs.get('href') or ''

        tips[id_] = Tip(tip, code, src)

Step by step:

• First I get all table cells or td elements in the table row.

• I parse the tip ID from the first cell, stripping off the dot and storing it in a variable called id_.

• The tip html is in the second table cell.

• I check if there are any links in the tips html. As you scroll down on the tips page there is always a share link and an optional second resource link.

• I put the tip code in a variable called code.

• Then I check if the tip was already shared on Twitter by checking if PYBITES_HAS_TWEETED (pybites/status) is in the share link, or if the tip does not contain any code (some are just quotes). In these instances we want to exclude the tip.

• Next we put the tip text in a variable called tip.

• We add the resource link in a variable called src. As it’s optional we first check the length of the links list.

• Finally we make the Tip namedtuple and assign it as value to the id_ key in the tips dict.

Lastly we return the tips dict:

    return tips

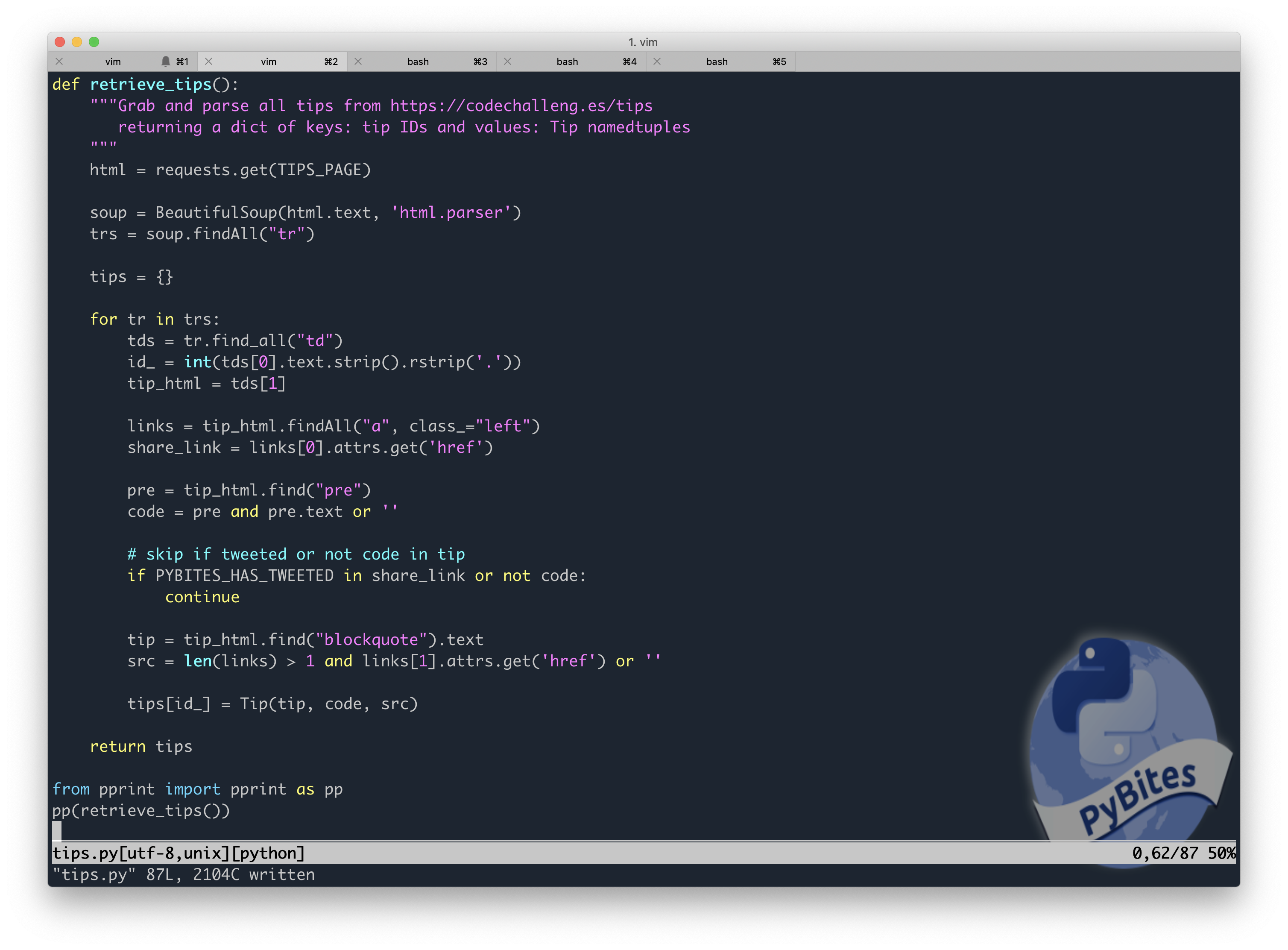

Let’s see if this works using pprint:

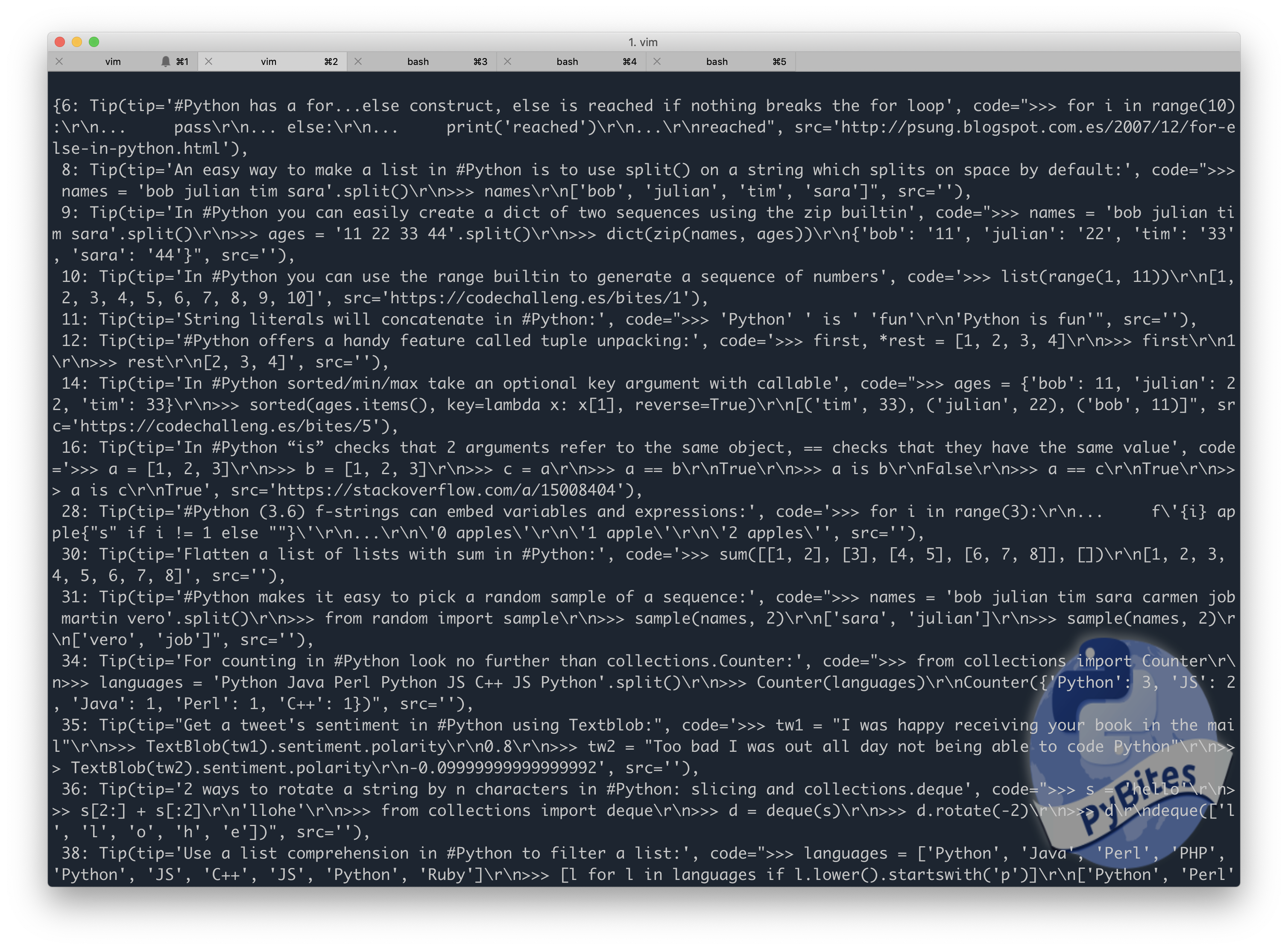

Running this it outputs:

Great. Let’s make a carbon image next.

Beautiful images of your source code

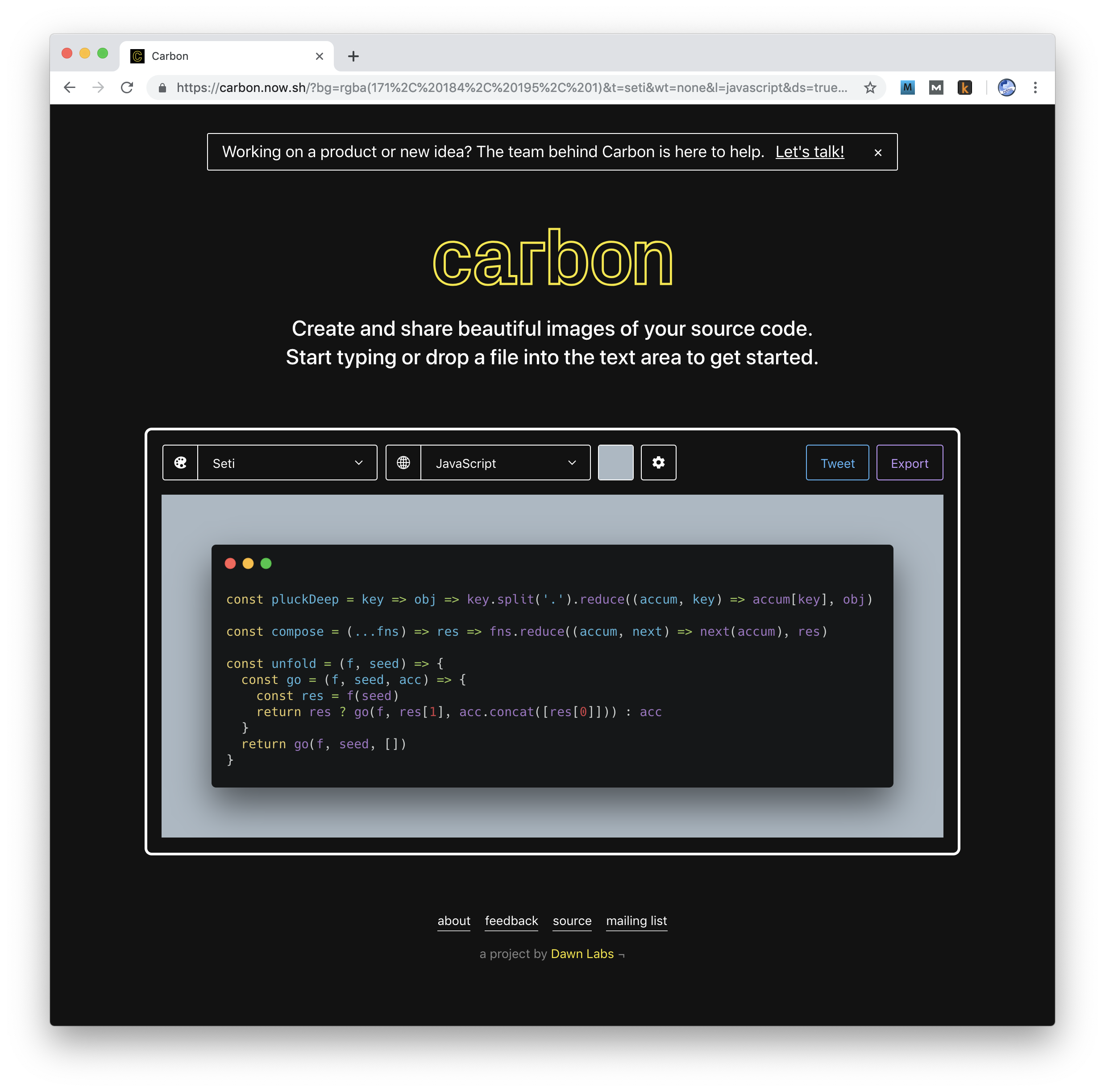

Meet carbon:

It allows you to add code, choose a language and configure other settings, then generate the image and/or tweet it out. It’s really nice!

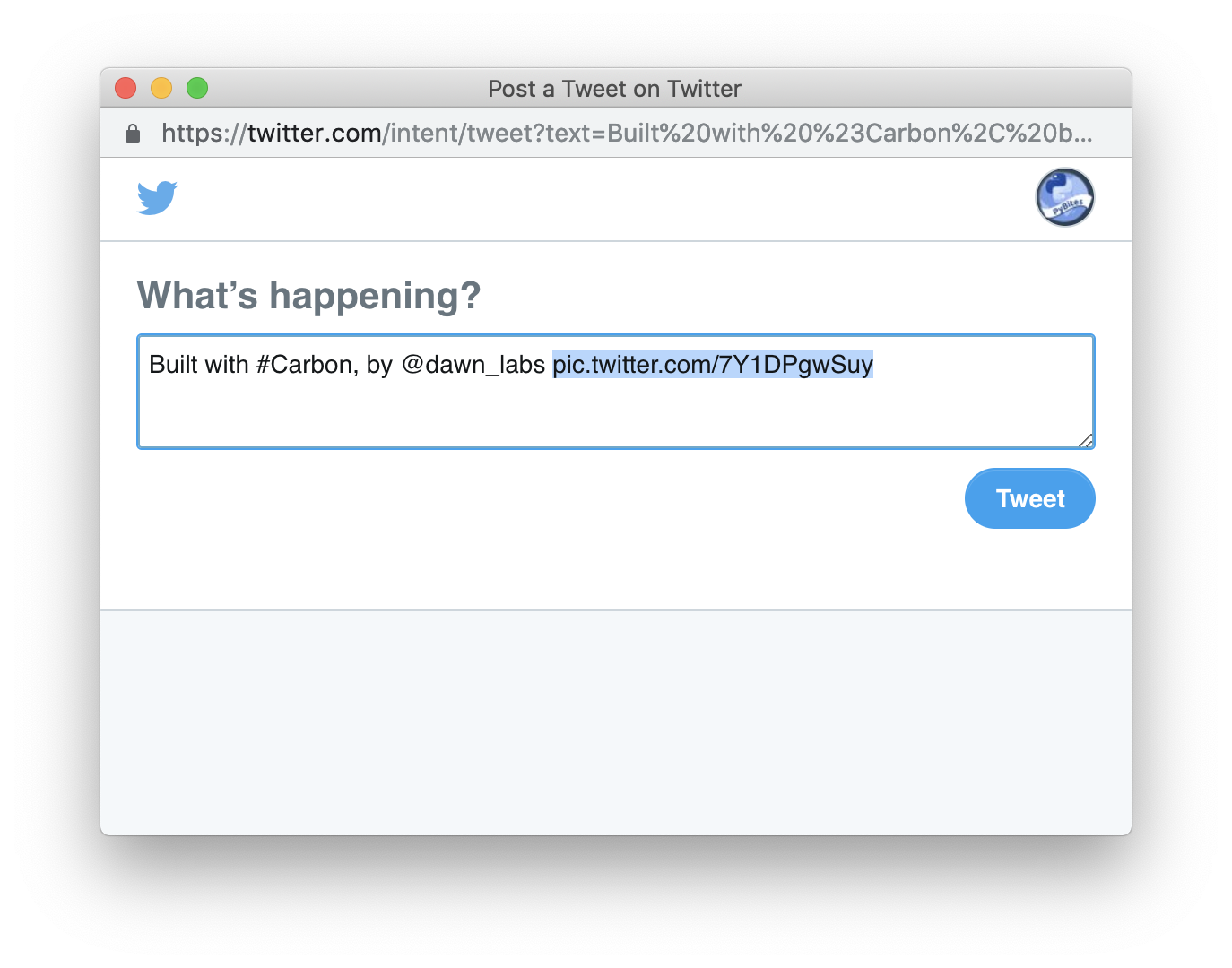

While playing with the interface I found that clicking the Tweet button it would generate a shareable picture hosted on Twitter. For example clicking the Tweet button I get this popup:

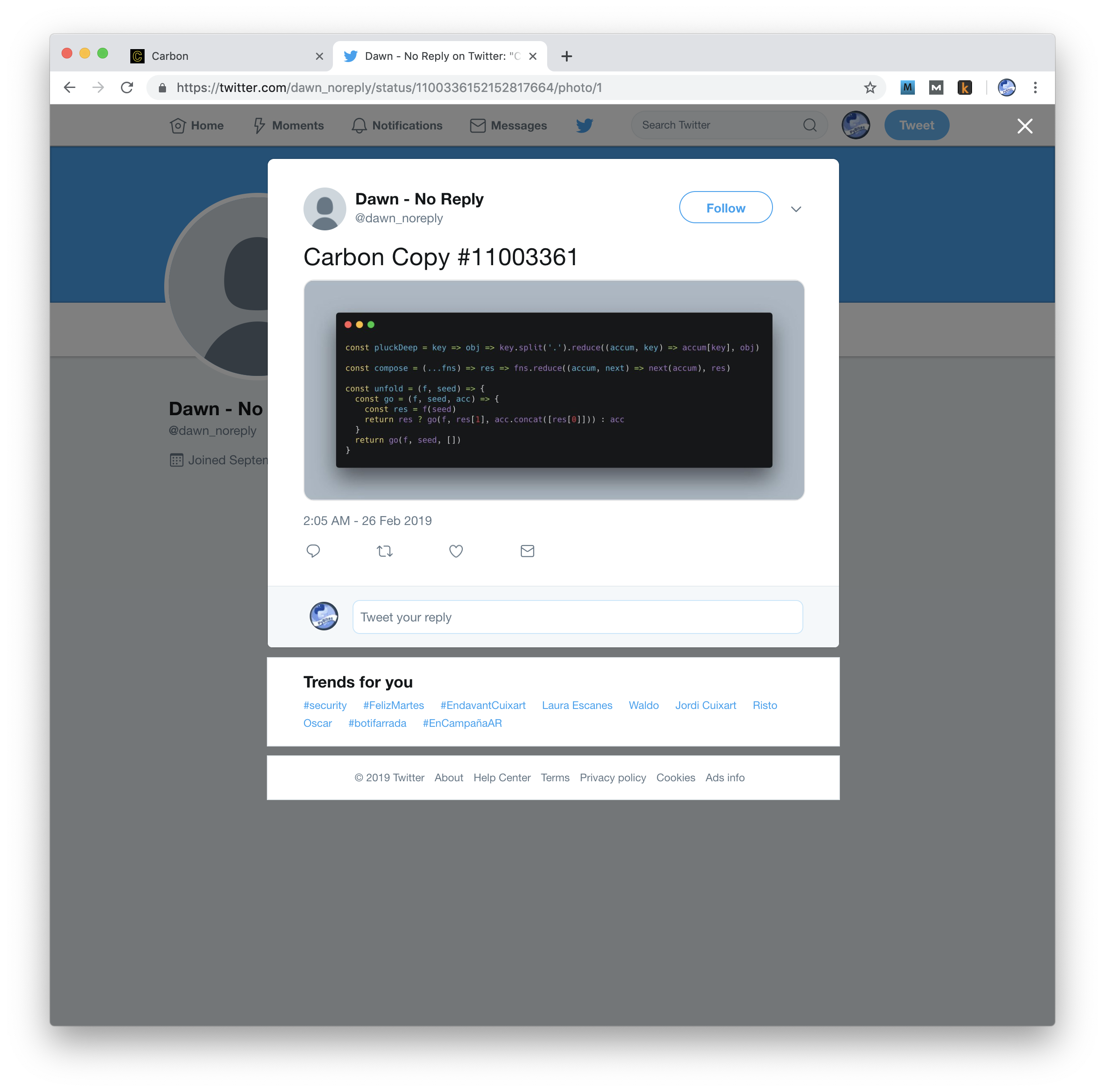

And that Twitter link shows the generated code snippet image:

We can automate this using Selenium to click the Tweet button, capturing the generated image link. This is why I defined the TWEET_BTN_CLASS constant which is the class set on this button.

Use Selenium to create tip code image

Let’s write the second function get_carbon_image:

def get_carbon_image(tip):
    """Visit carbon.now.sh with the code, click the Tweet button
    and grab and return the Twitter picture url
    """

First we need to encode (replace special characters) the tip code snippet. quote_plus (from urllib.parse) also replaces spaces by plus signs, as required for quoting HTML form values when building up a query string to go into a URL (see docs).

    code = urllib.parse.quote_plus(tip.code)

With that done we define the full url:

    url = CARBON.format(code=code)

We then start the Chromedriver. Unlike last time I am not going to use headless mode here, because I’d actually like to see what Selenium is doing:

    driver = webdriver.Chrome()
    driver.get(url)

Here we locate mentioned TWEET_BTN_CLASS (jsx-2739697134) button and click on it:

    driver.find_element_by_class_name(TWEET_BTN_CLASS).click()

Trial and error taught me that this might take a bit so I use sleep:

    sleep(5)

Retrieve the image from popup

And here is the tricky part. The Tweet button opened a popup but the driver is still on the main browser page window (see seconds 15 and 41 of the demo below).

You can toggle windows though using driver.switch_to.window:

    window_handles = driver.window_handles
    driver.switch_to.window(window_handles[1])

Now I am on the Twitter popup window and I can target the status ID field and grab the image URL from it:

    status = driver.find_element_by_id('status')
    img = status.text.split(' ')[-1]

Finally I quit the driver (this closes the browser) and return the image string:

    driver.quit()
    return img

See it in action

Here you can see this automation script in action, generating an image from a random tip as well as when specifying a specific ID:
